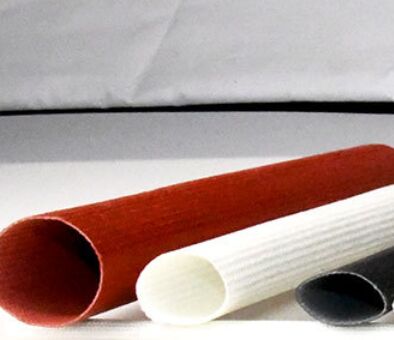

UL Certified 1.5kV–10kV Electrical Insulation Flame Retardant UL VW-1 Silicone Fiberglass Braided Sleeve for Motor & Transformer

UL Certified 1.5kV–10kV Electrical Insulation Flame Retardant UL VW-1 Silicone Fiberglass Braided Sleeve for Motor & Transformer

UL Certified 1.5kV–10kV Electrical Insulation Flame Retardant UL VW-1 Silicone Fiberglass Braided Sleeve for Motor & Transformer

Nama Merek: None
Nomor Model: 10mm
Moq: 10
harga: negotiable
Ketentuan Pembayaran: T/T
Kemampuan pasokan: 400000m/hari
Informasi Rinci
Deskripsi produk
Informasi Rinci
Tempat asal:
Cina
Sertifikasi:
ISO9001
Tahan Suhu:
-60°C hingga +200°C
Isolasi Listrik:
1,5kV–10kV
Fleksibilitas:
Fleksibilitas, kelembutan dan daya tahan yang unggul.
Kekuatan Mekanik:
≤3×ID
Tahan Api:
UL VW-1, padam sendiri
Ketahanan Kimia:
Menolak minyak, bahan bakar, asam, ozon, dan UV
Penuaan:
anti penuaan jangka panjang
Ringan:
Lebih ringan dari selang karet/logam
Kemasan rincian:
Karton
Menyediakan kemampuan:
400000m/hari
Deskripsi produk

The inner-fiberglass outer-braided fiberglass tube (also known as BWFRP: Braided Wound Fiberglass Reinforced Plastic Tube) is a high-performance composite pipe made of alkali-free fiberglass and high-performance epoxy resin.

Manufactured via a continuous braiding-impregnation-pultrusion process, the tube has a 120° braiding angle for balanced tensile strength and flexibility. Key properties:

  • High ring stiffness & tensile strength
  • Excellent corrosion resistance & electrical insulation
  • Flame retardant (Oxygen index >28)
  • Lightweight & easy installation
Applications
  1. Power & Communication Engineering
    • Cable protection for urban power grids, subway & rail transit systems
    • Communication ducting for underground networks (anti-settlement)
  2. Electrical & Electronics
    • Insulation sleeves for motors, transformers, inverters & inductors
    • Wire harness protection in automotive & industrial equipment
  3. Industrial & Chemical
    • Corrosive media pipelines in chemical, pharmaceutical & wastewater treatment plants
    • High-temperature insulation & thermal protection for industrial piping
  4. Infrastructure & Construction
    • Cable conduits for new energy charging piles & urban renewal projects
    • Protection pipes for optical fiber & power cables in municipal engineering
  5. UL Certified 1.5kV–10kV Electrical Insulation Flame Retardant UL VW-1 Silicone Fiberglass Braided Sleeve for Motor & Transformer 0
