Tabung Isolasi Panas Menyusut
Created with Pixso.

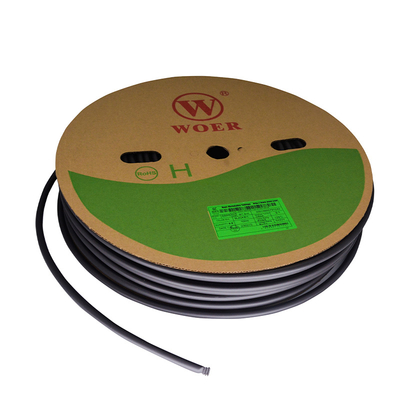

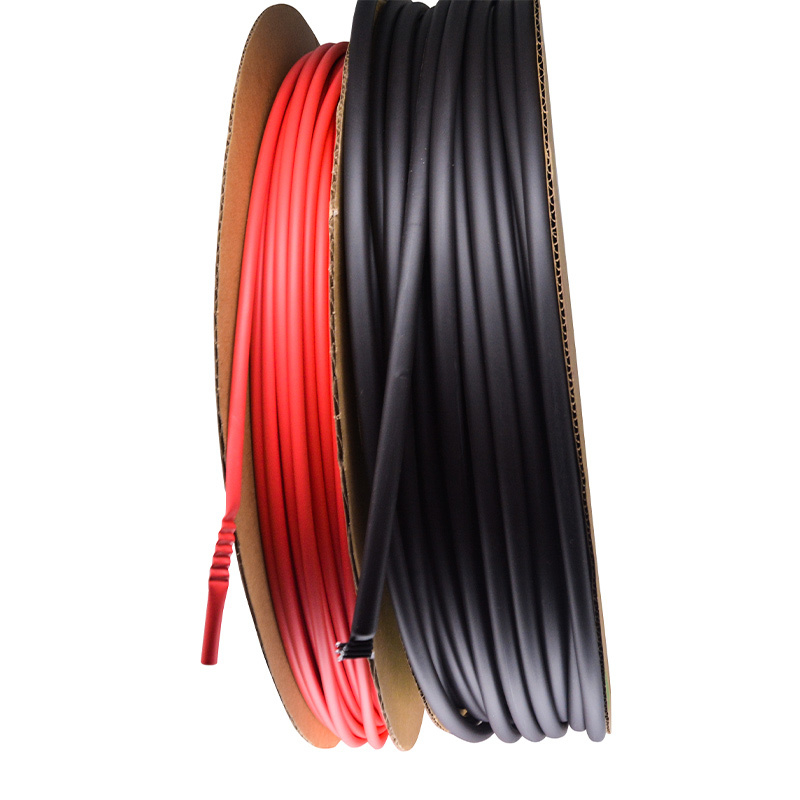

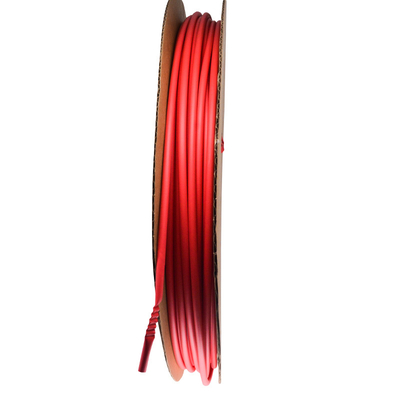

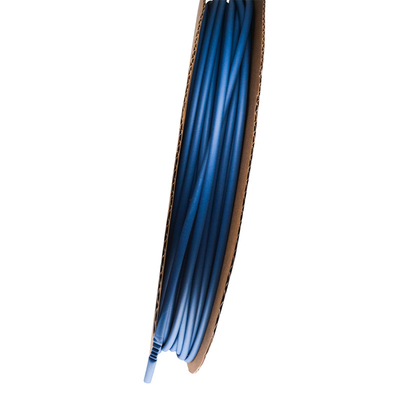

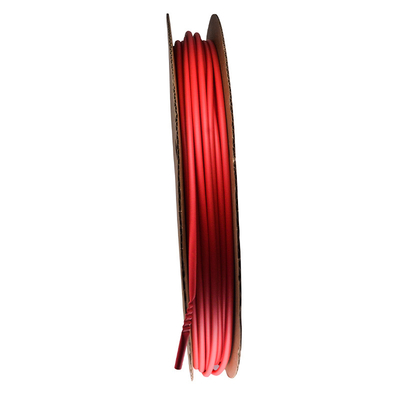

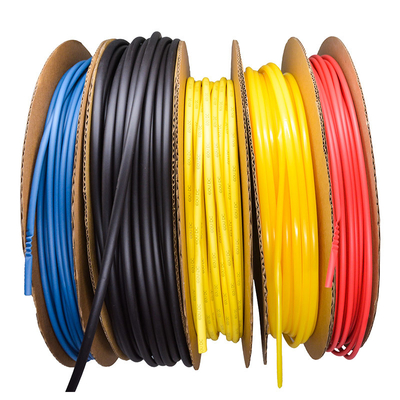

Premium Shrinking Tubing Offering Great Mechanical Strength, Waterproof and Uniform Shrinkage

Premium Shrinking Tubing Offering Great Mechanical Strength, Waterproof and Uniform Shrinkage

Nama Merek: Long
Nomor Model: 2.4-180mm
Moq: 2m
harga: Can discussible
Ketentuan Pembayaran: T/T, D/P, D/A, L/C, Western Union, Moneygram
Kemampuan pasokan: 300000 meter per hari
Informasi Rinci
Tempat asal:
CINA
Sertifikasi:
ISO9001
Rasio penyusutan:
2:1 3:1 tanpa lem
Bahan:
PE
Warna:
Merah, kuning, biru, putih, hitam
Ketebalan dinding:
Dinding tipis
Fitur:
Ketahanan tinggi terhadap cairan korosif dalam suhu ekstrem
Api atau tidak:
Retardant api
lembut:
Sangat fleksibel
Suhu operasi terus menerus:
-54℃- 199℃
Kemasan rincian:
Gulung / Karton
Menyediakan kemampuan:
300000 meter per hari
Menyoroti:

high strength heat shrink tubing

,

waterproof shrink insulation tube

,

uniform shrinkage heat shrink tube

Deskripsi produk

Polyolefin Shrink Tubing Dual Wall With Glue Heat Shrink Tubing



Thin wall fluoroelastomer heat shrink tubing suitable for use in electronic systems and components in automotive, military/ aerospace and industrial applications requiring outstanding heat and fluid resistance.



Features



●  2:1 shrink ratio

●  High withstand to corrosive fluids in extreme temperatures

●  Flame retardant

●  Very flexible

●  Easy to stamped

●  Continuous operating temperature:-55℃- 200℃

●  Shrink temperature:175℃

●  Meets 23053/ 13



Dimensions





Size Expanded Recovered

Standard Package

M/Spool



Round/Flat

Inch mm Internal Diameter (mm) Internal Diameter (mm) Wall Thickness (mm)
1/8 3.2 3.2 1.6 0.75±0.20 200 Round
3/16 4.8 4.8 2.4 0.89±0.20 100 Round
1/4 6.4 6.4 3.2 0.89±0.20 100 Round
3/8 9.5 9.5 4.8 0.89±0.20 50 Round
1/ 2 12.7 12.7 6.4 0.89±0.20 25 Round
3/4 19.0 19.0 9.5 1.07±0.30 25 Round
1 25.4 25.4 12.7 1.25±0.30 25 Round
1-1/ 2 38.1 38.1 19.0 1.40±0.30 25 Round
2 50.8 51.0 25.4 1.65±0.30 25 Round



Property Test Method Stantard Typical Performance
Tensile Strengtn(MPa) ASTM D2671 ≥8.5 10.0
Elongation(%) ASTM D2671 ≥250 300
Tensile Strengtn after aging (MPa) UL224 158℃X168hr ≥7.3 8.5
Elongation after aging(%) UL224 158℃X168hr ≥200 250
Dieletric strength(kv/mm) IEC243 ≥15 17.5
Volume resistivity(Ω.cm) ASTM D876 ≥1X109 2.5X109
Flammability VW-1 Pass Pass



Premium Shrinking Tubing Offering Great Mechanical Strength, Waterproof and Uniform Shrinkage 0

  Changzhou Longchuang Insulating Material Co., Ltd is a high-tech enterprise with headquarter in Changzhou, China. Founded in 2010,The Long brand has always been a guarantee for the supply of heat shrink tubing products and services. From product design and raw materials purchasing to final inspection and testing, Longchuang has a perfect quality assurance program covering the entire production process. So far, we have been successfully certified by ISO 9001, ISO 14001, ISO/TS 16949, UL, CSA, 3C, etc.

At Longchuang, we know this can be done.



FAQ

Professional Production Quality is Reliable

Q1 . Which certifications or test reports do you have?

A : We have UL,ROHS and REACH.

Q2 . How to ship my order? Is it safe?

A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.

For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”

Q3 . What about your delivery time?

A : We have a lot of products in stock. We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).

Q4 . Can you provide samples? Are the samples free?

A : Yes. We can provide samples.

Usually for our standard products with stock, we can supply samples free for testing.

Q5 . Could I put my own logo on it?

A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
